“前端框架核心”的学习一共三篇,前两篇分别给大家介绍了前端框架核心中的响应式实现的基本原理,以及关于模板编译的原理以及双向绑定的实现等知识点,今天是最后一篇,给大家分享虚拟DOM相关的内容。
还没有阅读的朋友可以先学习一下之前的内容:
我们来看现代框架中另一个重头戏——虚拟 DOM。
虚拟 DOM 这个概念其实并没有那么新,甚至在前端三大框架问世之前,虚拟 DOM 就已经存在了,只不过 React 创造性的应用了虚拟 DOM,为前端发展带来了变革。Vue 2.0 也很快跟进,使得虚拟 DOM 彻底成为现代框架的重要基因。
简单来说,虚拟 DOM 就是用数据结构表示 DOM 结构,它并没有真实 append 到 DOM 上,因此称之为「虚拟」。
应用虚拟 DOM 的收益也很直观:操作数据结构远比和浏览器交互去操作 DOM 快很多。
请读者准确理解这句话:操作数据结构是指改变对象(虚拟 DOM),这个过程比修改真实 DOM 快很多。
但虚拟 DOM 也最终是要挂载到浏览器上成为真实 DOM 节点,因此使用虚拟 DOM 并不能使得操作 DOM 的数量减少,但能够精确地获取最小的、最必要的操作 DOM 的集合。
这样一来,我们抽象表示 DOM,每次通过 DOM diff 计算出视图前后更新的最小差异,再去把最小差异应用到真实 DOM 上的做法,无疑更为可靠,性能更有保障。
那我们该如何表示虚拟 DOM 呢?又该如何产出虚拟 DOM 呢?
直观上我们看这样一段 DOM 结构:
<ul id="chapterList">
<li class="chapter">chapter1</li>
<li class="chapter">chapter2</li>
<li class="chapter">chapter3</li>
</ul>
如果用 JavaScript 来表示,我们采用对象结构:
const chapterListVirtualDom = {
tagName: 'ul',
attributes: {
id: 'chapterList'
},
children: [
{ tagName: 'li', attributes: { class: 'chapter' }, children: ['chapter1'] },
{ tagName: 'li', attributes: { class: 'chapter' }, children: ['chapter2'] },
{ tagName: 'li', attributes: { class: 'chapter' }, children: ['chapter3'] },
]
}
很好理解:tagName 表示虚拟 DOM 对应的真实 DOM 标签类型;attributes 是一个对象,表示真实 DOM 节点上所有的属性;children 对应真实 DOM 的 childNodes,其中 childNodes 每一项又是类似的结构。
我们来实现一个虚拟 DOM 生成类,用于生产虚拟 DOM:
class Element {
constructor(tagName, attributes = {}, children = []) {
this.tagName = tagName
this.attributes = attributes
this.children = children
}
}
function element(tagName, attributes, children) {
return new Element(tagName, attributes, children)
}

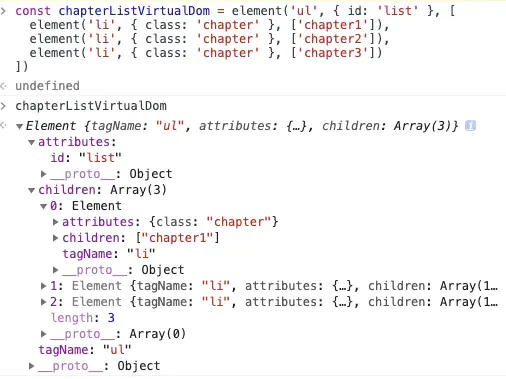

上述虚拟 DOM 就可以这样生成:
const chapterListVirtualDom = element('ul', { id: 'list' }, [
element('li', { class: 'chapter' }, ['chapter1']),
element('li', { class: 'chapter' }, ['chapter2']),
element('li', { class: 'chapter' }, ['chapter3'])
])
是不是很简单?我们继续完成虚拟 DOM 向真实 DOM 节点的生成。首先实现一个 setAttribute 方法,后续的代码都将使用 setAttribute 方法来对 DOM 节点进行属性设置。
const setAttribute = (node, key, value) => {
switch (key) {
case 'style':
node.style.cssText = value
break
case 'value':
let tagName = node.tagName || ''
tagName = tagName.toLowerCase()
if (
tagName === 'input' || tagName === 'textarea'
) {
node.value = value
} else {
// 如果节点不是 input 或者 textarea, 则使用 setAttribute 去设置属性
node.setAttribute(key, value)
}
break
default:
node.setAttribute(key, value)
break
}
}
Element 类中加入 render 原型方法,该方法的目的是根据虚拟 DOM 生成真实 DOM 片段:
class Element {
constructor(tagName, attributes = {}, children = []) {
this.tagName = tagName
this.attributes = attributes
this.children = children
}
render () {
let element = document.createElement(this.tagName)
let attributes = this.attributes
for (let key in attributes) {
setAttribute(element, key, attributes[key])
}
let children = this.children
children.forEach(child => {
let childElement = child instanceof Element
? child.render() // 若 child 也是虚拟节点,递归进行
: document.createTextNode(child) // 若是字符串,直接创建文本节点
element.appendChild(childElement)
})
return element
}
}
function element (tagName, attributes, children) {
return new Element(tagName, attributes, children)
}
实现也不困难,我们借助工具方法:setAttribute 进行属性的创建;对 children 每一项类型进行判断,如果是 Element 实例,进行递归调用 child 的 render 方法;直到遇见文本节点类型,进行内容渲染。
有了真实的 DOM 节点片段,我们趁热打铁,将真实的 DOM 节点渲染到浏览器上,实现 renderDOM 方法:
const renderDom = (element, target) => {
target.appendChild(element)
}
const setAttribute = (node, key, value) => {
switch (key) {
case 'style':
node.style.cssText = value
break
case 'value':
let tagName = node.tagName || ''
tagName = tagName.toLowerCase()
if (
tagName === 'input' || tagName === 'textarea'
) {
node.value = value
} else {
// 如果节点不是 input 或者 textarea,则使用 setAttribute 去设置属性
node.setAttribute(key, value)
}
break
default:
node.setAttribute(key, value)
break
}
}
class Element {
constructor(tagName, attributes = {}, children = []) {
this.tagName = tagName
this.attributes = attributes
this.children = children
}
render () {
let element = document.createElement(this.tagName)
let attributes = this.attributes
for (let key in attributes) {
setAttribute(element, key, attributes[key])
}
let children = this.children
children.forEach(child => {
let childElement = child instanceof Element
? child.render() // 若 child 也是虚拟节点,递归进行
: document.createTextNode(child) // 若是字符串,直接创建文本节点
element.appendChild(childElement)
})
return element
}
}
function element (tagName, attributes, children) {
return new Element(tagName, attributes, children)
}
const renderDom = (element, target) => {
target.appendChild(element)
}
const chapterListVirtualDom = element('ul', { id: 'list' }, [
element('li', { class: 'chapter' }, ['chapter1']),
element('li', { class: 'chapter' }, ['chapter2']),
element('li', { class: 'chapter' }, ['chapter3'])
])
const dom = chapterListVirtualDom.render()
renderDom(dom, document.body)
有了上述基础,我们可以产出一份虚拟 DOM,并渲染在浏览器中。当用户在特定操作后,会产出新的一份虚拟 DOM,如何得出前后两份虚拟 DOM 的差异,并交给浏览器需要更新的结果呢?这就涉及到 DOM diff 的过程。
直观上,因为虚拟 DOM 是个树形结构,所以我们需要对两份虚拟 DOM 进行递归比较,将变化存储在一个变量 patches 中:
const diff = (oldVirtualDom, newVirtualDom) => {
let patches = {}
// 递归树,比较后的结果放到 patches
walkToDiff(oldVirtualDom, newVirtualDom, 0, patches)
// 返回 diff 结果
return patches
}
walkToDiff 前两个参数是两个需要比较的虚拟 DOM 对象;第三个参数记录 nodeIndex,在删除节点时使用,初始为 0;第四个参数是一个闭包变量,记录 diff 结果:
let initialIndex = 0
const walkToDiff = (oldVirtualDom, newVirtualDom, index, patches) => {
let diffResult = []
// 如果 newVirtualDom 不存在,说明该节点被移除,
// 我们将 type 为 REMOVE 的对象推进 diffResult 变量,并记录 index
if (!newVirtualDom) {
diffResult.push({
type: 'REMOVE',
index
})
}
// 如果新旧节点都是文本节点,是字符串
else if (typeof oldVirtualDom === 'string' && typeof newVirtualDom === 'string') {
// 比较文本是否相同,如果不同则记录新的结果
if (oldVirtualDom !== newVirtualDom) {
diffResult.push({
type: 'MODIFY_TEXT',
data: newVirtualDom,
index
})
}
}
// 如果新旧节点类型相同
else if (oldVirtualDom.tagName === newVirtualDom.tagName) {
// 比较属性是否相同
let diffAttributeResult = {}
for (let key in oldVirtualDom) {
if (oldVirtualDom[key] !== newVirtualDom[key]) {
diffAttributeResult[key] = newVirtualDom[key]
}
}
for (let key in newVirtualDom) {
// 旧节点不存在的新属性
if (!oldVirtualDom.hasOwnProperty(key)) {
diffAttributeResult[key] = newVirtualDom[key]
}
}
if (Object.keys(diffAttributeResult).length > 0) {
diffResult.push({
type: 'MODIFY_ATTRIBUTES',
diffAttributeResult
})
}
// 如果有子节点,遍历子节点
oldVirtualDom.children.forEach((child, index) => {
walkToDiff(child, newVirtualDom.children[index], ++initialIndex, patches)
})
}
// else 说明节点类型不同,被直接替换了,我们直接将新的结果 push
else {
diffResult.push({
type: 'REPLACE',
newVirtualDom
})
}
if (!oldVirtualDom) {
diffResult.push({
type: 'REPLACE',
newVirtualDom
})
}
if (diffResult.length) {
patches[index] = diffResult
}
}
const setAttribute = (node, key, value) => {
switch (key) {
case 'style':
node.style.cssText = value
break
case 'value':
let tagName = node.tagName || ''
tagName = tagName.toLowerCase()
if (
tagName === 'input' || tagName === 'textarea'
) {
node.value = value
} else {
// 如果节点不是 input 或者 textarea, 则使用 setAttribute 去设置属性
node.setAttribute(key, value)
}
break
default:
node.setAttribute(key, value)
break
}
}
class Element {
constructor(tagName, attributes = {}, children = []) {
this.tagName = tagName
this.attributes = attributes
this.children = children
}
render () {
let element = document.createElement(this.tagName)
let attributes = this.attributes
for (let key in attributes) {
setAttribute(element, key, attributes[key])
}
let children = this.children
children.forEach(child => {
let childElement = child instanceof Element
? child.render() // 若 child 也是虚拟节点,递归进行
: document.createTextNode(child) // 若是字符串,直接创建文本节点
element.appendChild(childElement)
})
return element
}
}
function element (tagName, attributes, children) {
return new Element(tagName, attributes, children)
}
const renderDom = (element, target) => {
target.appendChild(element)
}
const diff = (oldVirtualDom, newVirtualDom) => {
let patches = {}
// 递归树 比较后的结果放到 patches
walkToDiff(oldVirtualDom, newVirtualDom, 0, patches)
return patches
}
let initialIndex = 0
const walkToDiff = (oldVirtualDom, newVirtualDom, index, patches) => {
let diffResult = []
// 如果 newVirtualDom 不存在,说明该节点被移除,
// 我们将 type 为 REMOVE 的对象推进 diffResult 变量,并记录 index
if (!newVirtualDom) {
diffResult.push({
type: 'REMOVE',
index
})
}
// 如果新旧节点都是文本节点,是字符串
else if (typeof oldVirtualDom === 'string' && typeof newVirtualDom === 'string') {
// 比较文本是否相同,如果不同则记录新的结果
if (oldVirtualDom !== newVirtualDom) {
diffResult.push({
type: 'MODIFY_TEXT',
data: newVirtualDom,
index
})
}
}
// 如果新旧节点类型相同
else if (oldVirtualDom.tagName === newVirtualDom.tagName) {
// 比较属性是否相同
let diffAttributeResult = {}
for (let key in oldVirtualDom) {
if (oldVirtualDom[key] !== newVirtualDom[key]) {
diffAttributeResult[key] = newVirtualDom[key]
}
}
for (let key in newVirtualDom) {
// 旧节点不存在的新属性
if (!oldVirtualDom.hasOwnProperty(key)) {
diffAttributeResult[key] = newVirtualDom[key]
}
}
if (Object.keys(diffAttributeResult).length > 0) {
diffResult.push({
type: 'MODIFY_ATTRIBUTES',
diffAttributeResult
})
}
// 如果有子节点,遍历子节点
oldVirtualDom.children.forEach((child, index) => {
walkToDiff(child, newVirtualDom.children[index], ++initialIndex, patches)
})
}
// else 说明节点类型不同,被直接替换了,我们直接将新的结果 push
else {
diffResult.push({
type: 'REPLACE',
newVirtualDom
})
}
if (!oldVirtualDom) {
diffResult.push({
type: 'REPLACE',
newVirtualDom
})
}
if (diffResult.length) {
patches[index] = diffResult
}
}
const chapterListVirtualDom = element('ul', { id: 'list' }, [
element('li', { class: 'chapter' }, ['chapter1']),
element('li', { class: 'chapter' }, ['chapter2']),
element('li', { class: 'chapter' }, ['chapter3'])
])
const chapterListVirtualDom1 = element('ul', { id: 'list2' }, [
element('li', { class: 'chapter2' }, ['chapter4']),
element('li', { class: 'chapter2' }, ['chapter5']),
element('li', { class: 'chapter2' }, ['chapter6'])
])
const patch = (node, patches) => {
let walker = { index: 0 }
walk(node, walker, patches)
}
const walk = (node, walker, patches) => {
let currentPatch = patches[walker.index]
let childNodes = node.childNodes
childNodes.forEach(child => {
walker.index++
walk(child, walker, patches)
})
if (currentPatch) {
doPatch(node, currentPatch)
}
}
const doPatch = (node, patches) => {
patches.forEach(patch => {
switch (patch.type) {
case 'MODIFY_ATTRIBUTES':
const attributes = patch.diffAttributeResult.attributes
for (let key in attributes) {
if (node.nodeType !== 1) return
const value = attributes[key]
if (value) {
setAttribute(node, key, value)
} else {
node.removeAttribute(key)
}
}
break
case 'MODIFY_TEXT':
node.textContent = patch.data
break
case 'REPLACE':
let newNode = (patch.newNode instanceof Element)
? render(patch.newNode)
: document.createTextNode(patch.newNode)
node.parentNode.replaceChild(newNode, node)
break
case 'REMOVE':
node.parentNode.removeChild(node)
break
default:
break
}
})
}
先执行
var element = chapterListVirtualDom.render()
renderDom(element, document.body)
再执行
const patches = diff(chapterListVirtualDom, chapterListVirtualDom1)
patch(element, patches)
生成结果符合预期。
短短不到两百行代码,就实现了虚拟 DOM 思想的全部流程。当然其中还有一些优化手段,一些边界情况并没有进行特别处理,但是我们去翻看一些著名的虚拟 DOM 库:snabbdom、etch 等,其实现思想和上述教例完全一致。
